A camper-van elevator bed engineered by RoamLabX from the ground up: thin, lightweight, expandable, and controlled by a proprietary smart lift system.
One van. Two usable spaces.
Raise the bed overhead to recover the floor for seating, cargo, dining or work. Lower it when it is time to sleep, then pull the two yellow handles to extend the frame from 63 to 77 inches.

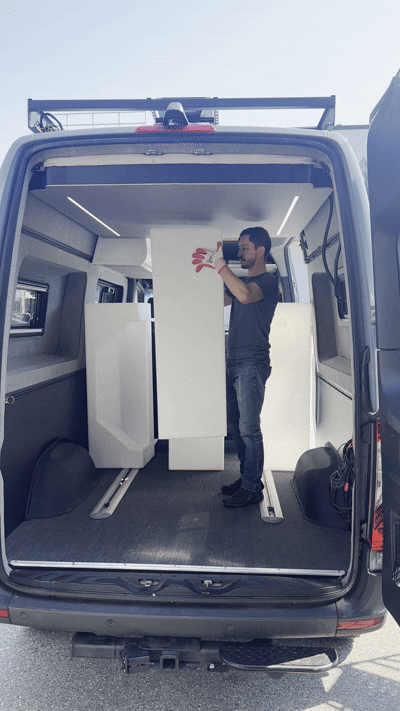

See the living space open up.

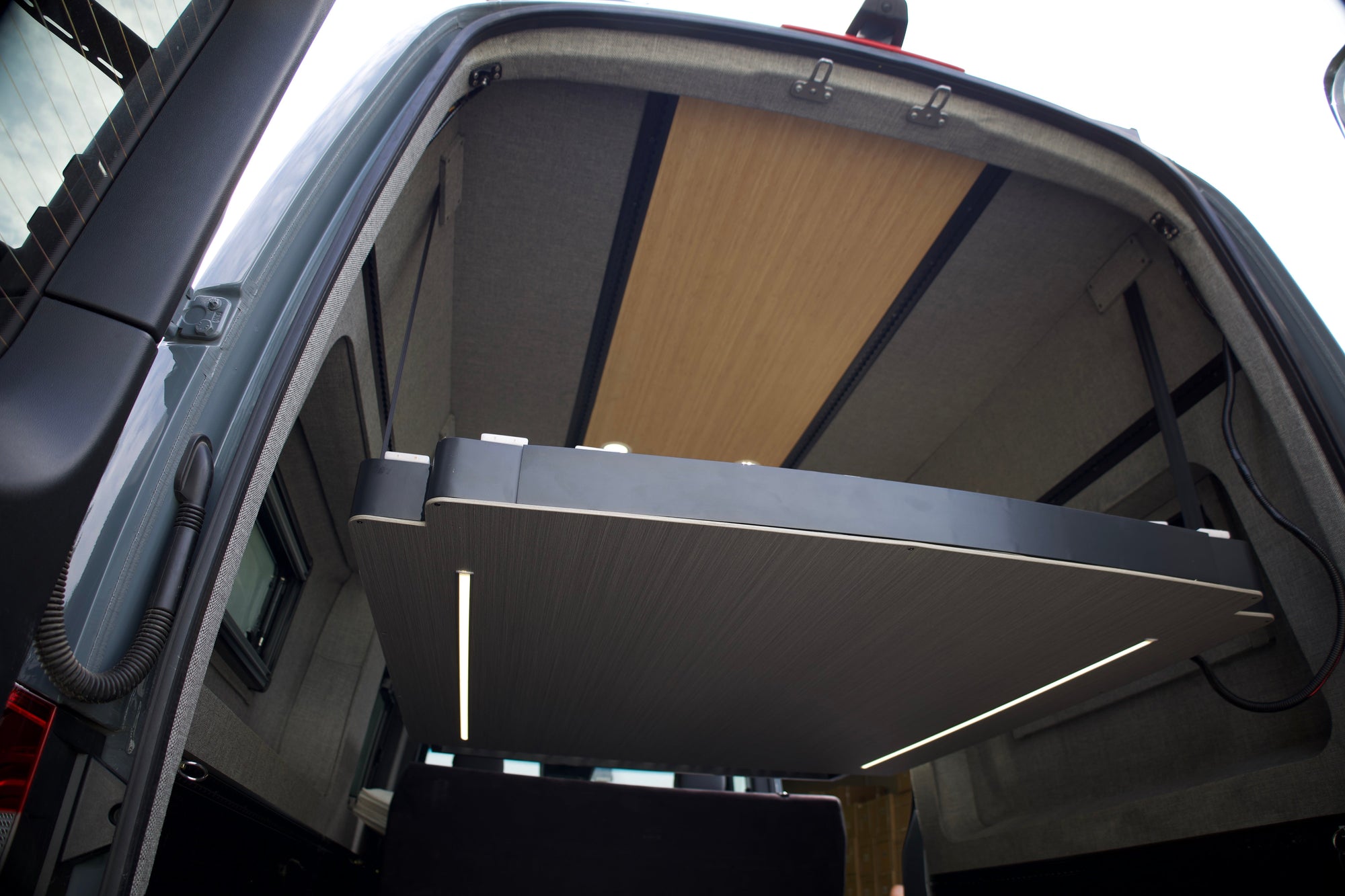

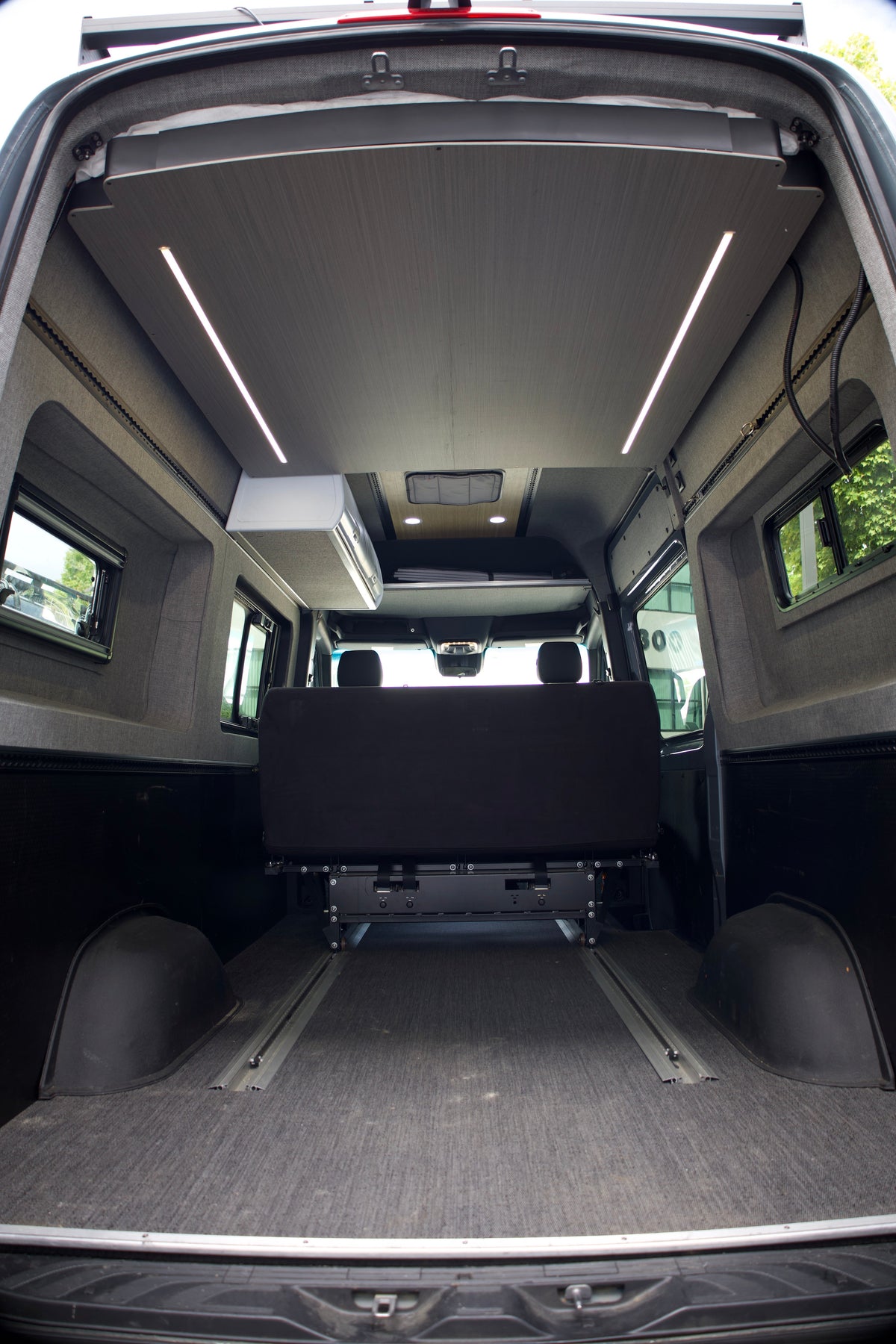

Raise the RoamLabX camper van elevator bed to reclaim the interior for seating, cargo, dining or work. Lower and extend it when it is time to sleep.
Distribution experience became an engineering brief.
RoamLabX previously distributed another elevator-bed brand. Limited product support—and the tight spatial requirements of real camper vans—made the opportunity clear: a van bed lift should be engineered specifically for a van, not adapted from a generic lifting platform.
Thin by design
A compact 80 mm / 3.1-inch frame preserves the headroom that makes a camper interior usable.
Compact motors
Small lift motors integrate into the bed structure and include a controlled mechanical release for power-loss situations.
RoamLabX controls
A proprietary control system was developed from the ground up around smooth daily operation, torque monitoring and any-height holding.
Raise the bed. Reclaim the room.
The proprietary RoamLabX motor controller continuously monitors torque load while the complete sleeping platform moves vertically. When resistance increases—including when the bed gently clamps against the ceiling—the controller automatically stops the motors.
- Mechanically locks the bed at any selected height
- Wireless remote included; optional hardwired physical switch
- Simplified positive (+) and negative (–) power connections
- Manual emergency release accessible from above or below
- Guide rails included for controlled vertical movement
- Raises with the mattress, bedding and secured soft items
Compact by day. Full length by night.

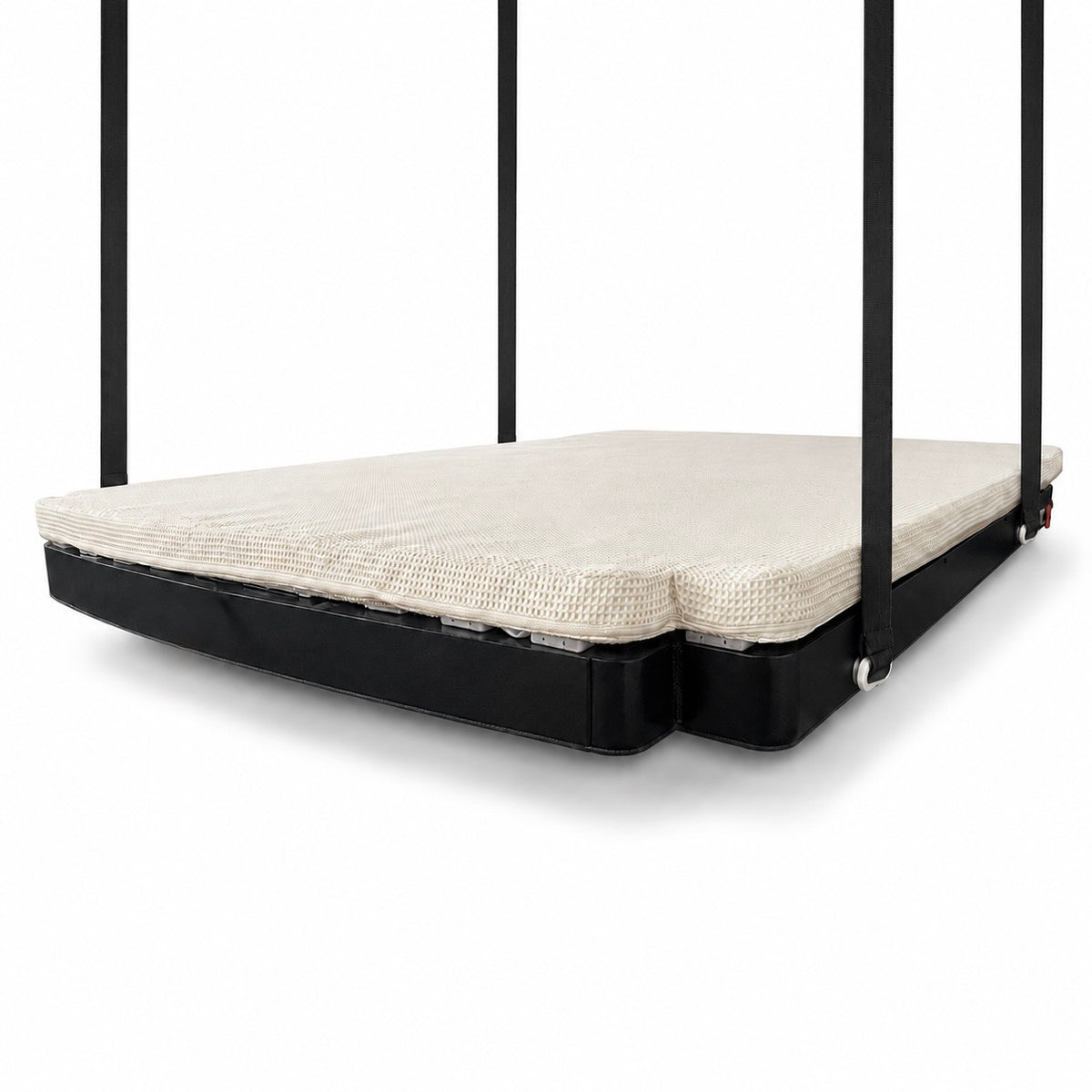

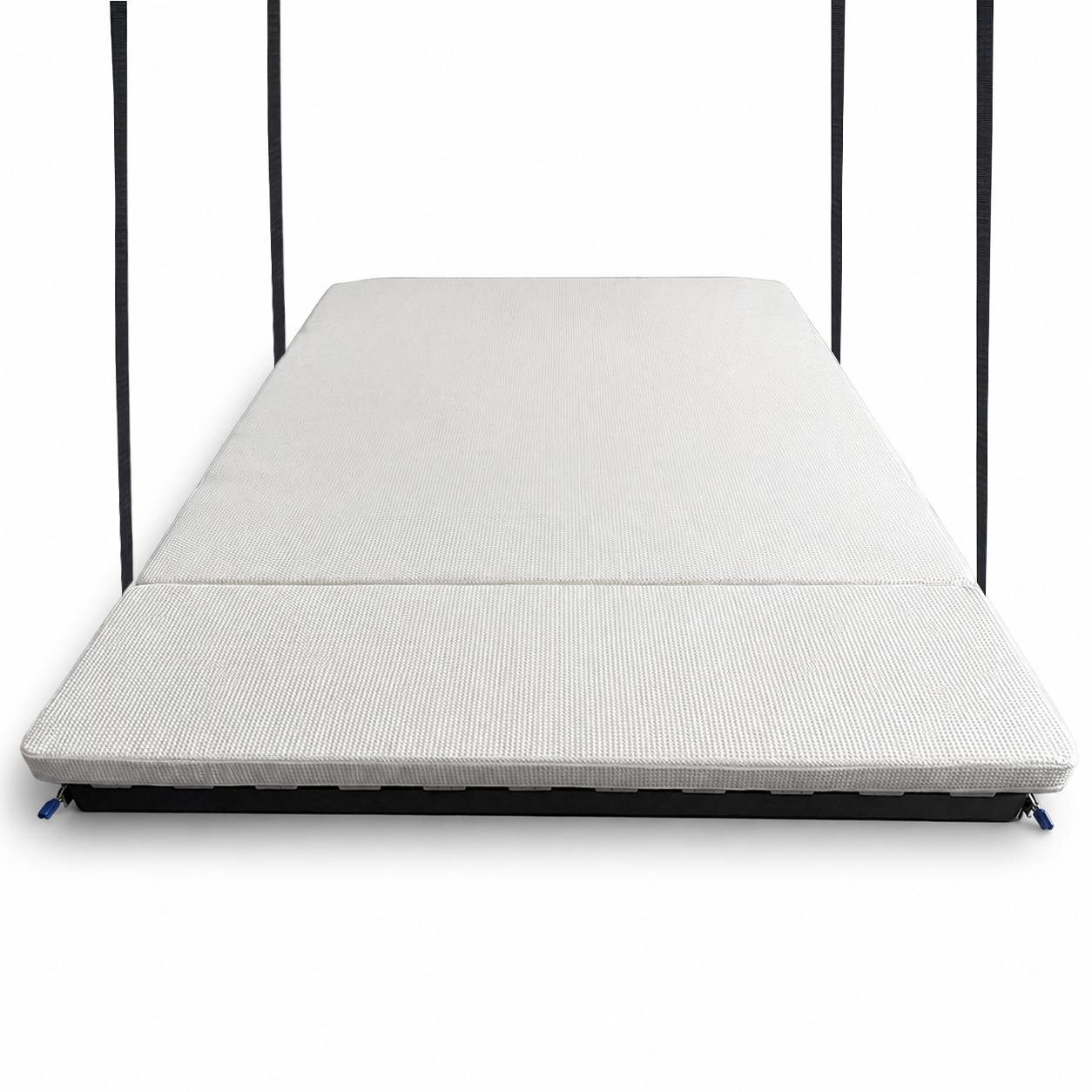

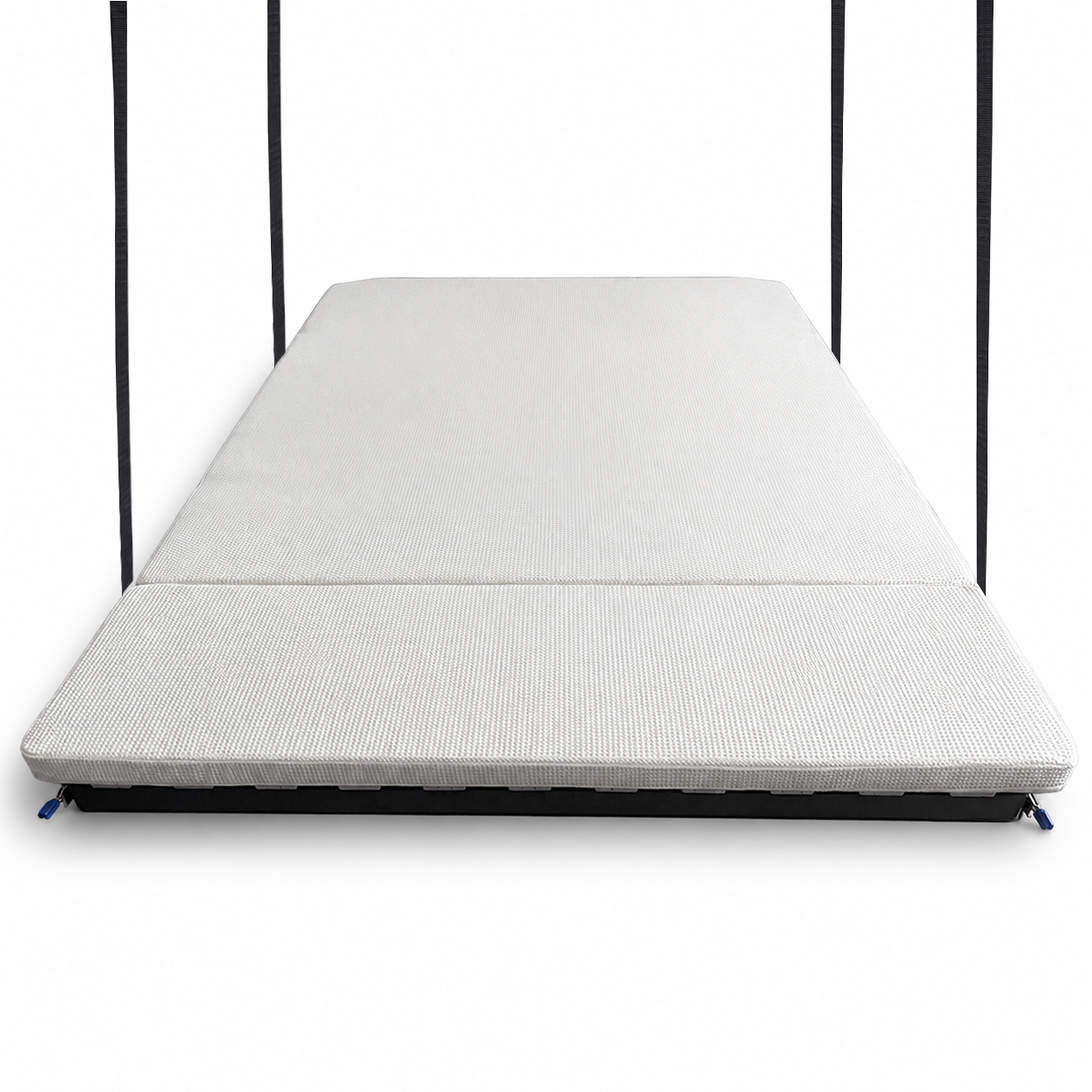

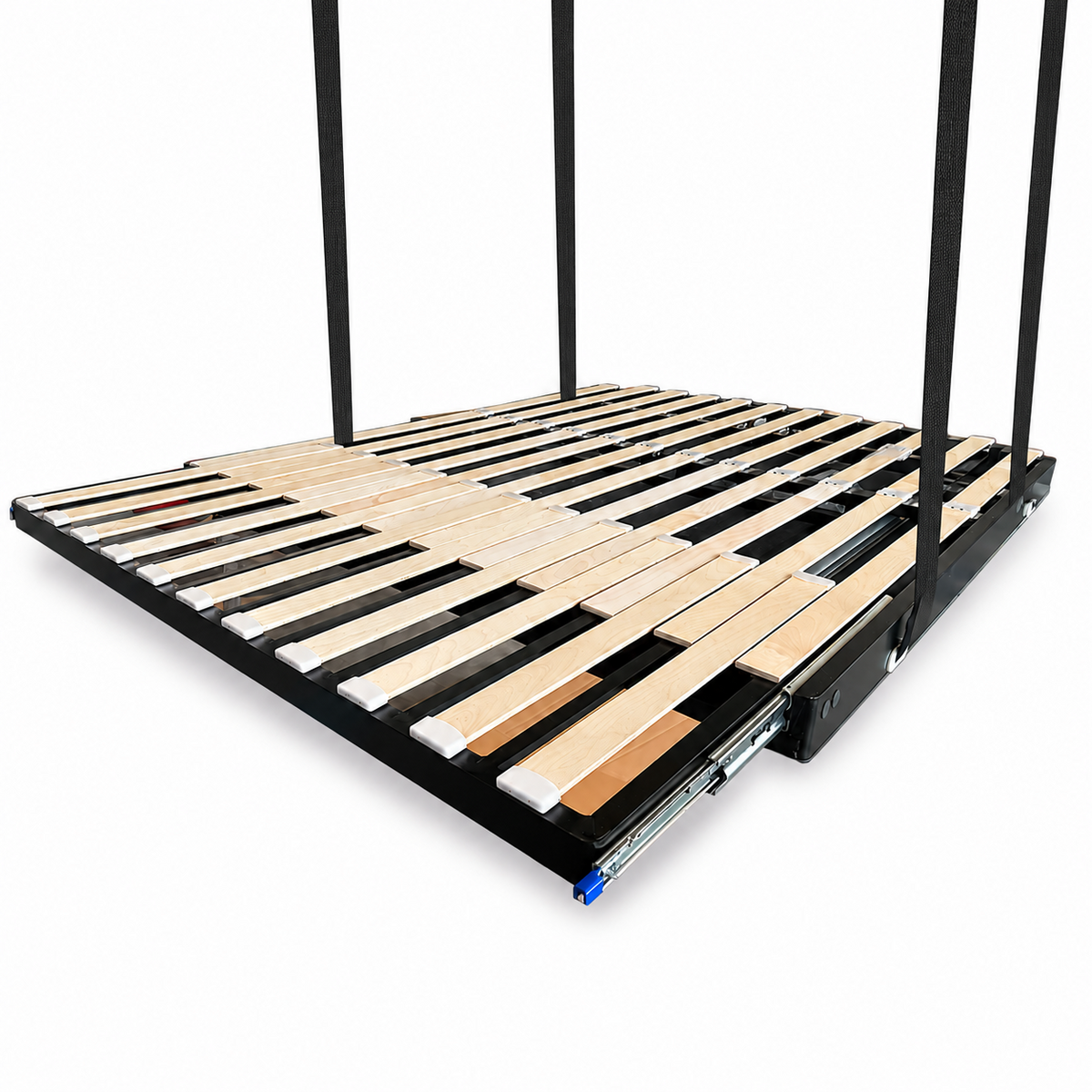

The frame retracts to 63 × 55 inches, then expands to 77 × 55 inches for north–south sleeping. Pull the two yellow handles to deploy it; press the release and push inward to retract. The mechanism locks automatically. The rear profile is shaped around the van door-frame and body contour, reclaiming approximately 4 inches of usable sleeping length that a straight rear edge would leave behind.
The current manual-extension design saves approximately 10 lb compared with the earlier powered-extension arrangement.
Controlled manual lowering is built into every motor.
Each motor includes an emergency release handle. Access it from above through the bed-frame ribs, or from below after removing the bed panels.
- Engaging the handle mechanically disengages the motor drive
- The bed can then be lowered manually in a controlled manner
- Deliberate downward force is required, helping prevent a sudden drop
- Professional installation and correct lift alignment are strongly recommended
Engineered around limited van headroom.
The powder-coated aluminum frame is approximately 80 mm, or 3.1 inches, thick before slats and mattress. Its compact structure helps preserve the space above and below the bed.
600-lb static capacity
Substantial two-person sleeping capacity when installed according to the supplied instructions.
3-inch aluminum frame
A low-profile powder-coated structure designed for strength without unnecessary bulk.
2-inch bi-fold mattress
The included mattress folds with the extension so the platform can remain compact while retracted.
Torque-sensing control
The system detects resistance and automatically stops the lift.
Finished felt underside
Automotive-grade, moisture- and mold-resistant felt creates a clean visible ceiling surface.
Complete control package
Wireless remote, switch, control module and simplified positive/negative wiring are included.

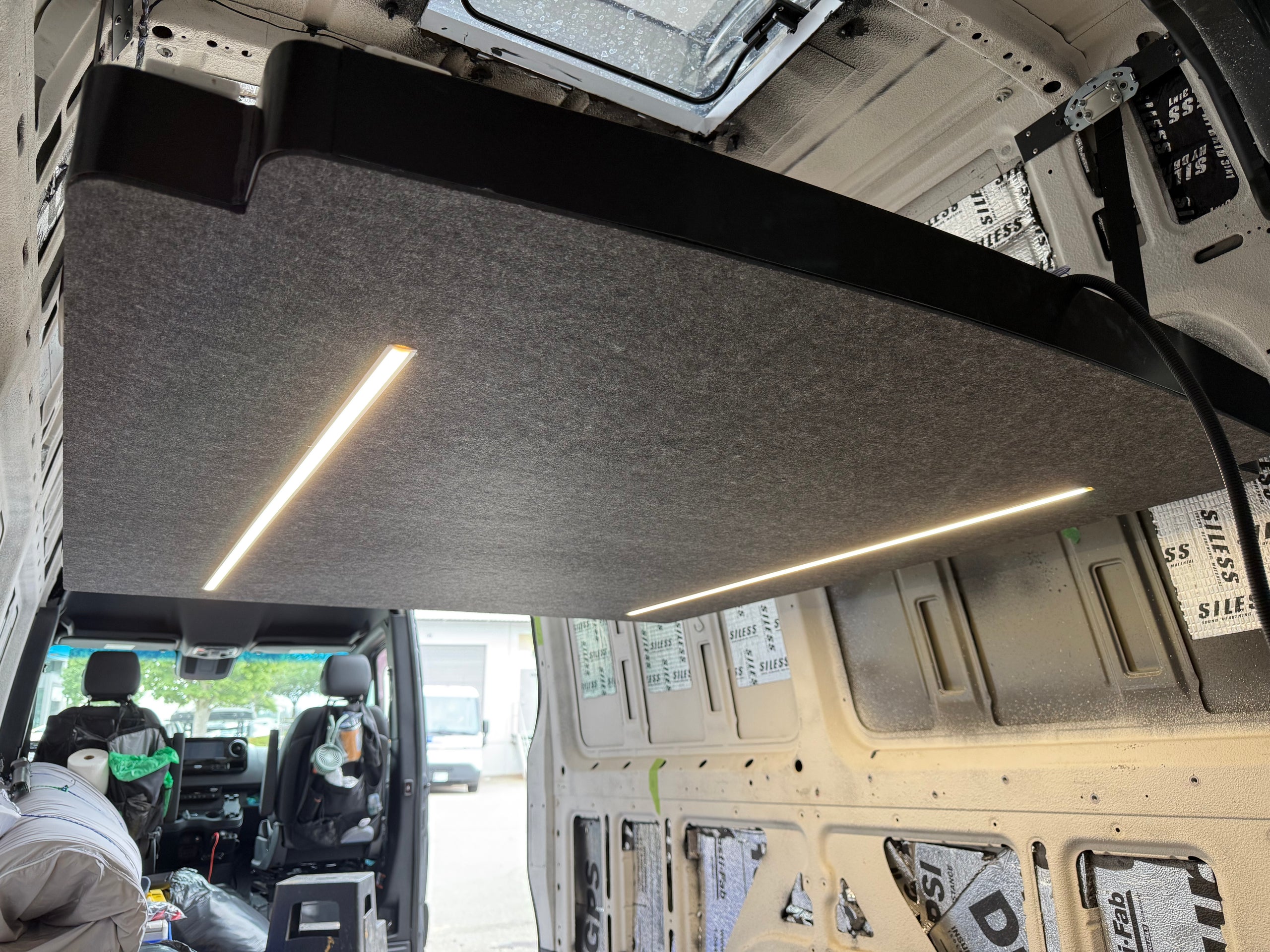

Automotive-grade felt. Quieter, cleaner, better suited to van life.
The latest RoamLabX elevator bed uses an upgraded automotive-grade felt liner on the underside, creating a refined ceiling surface when the bed is raised.
- Lighter and more environmentally friendly than the previous panel material
- Helps absorb road noise, panel vibration and interior echo
- Resists moisture, mold and rot
- Non-fraying when cut and UV stable for long-term durability
- Clean automotive finish visible from the living space below

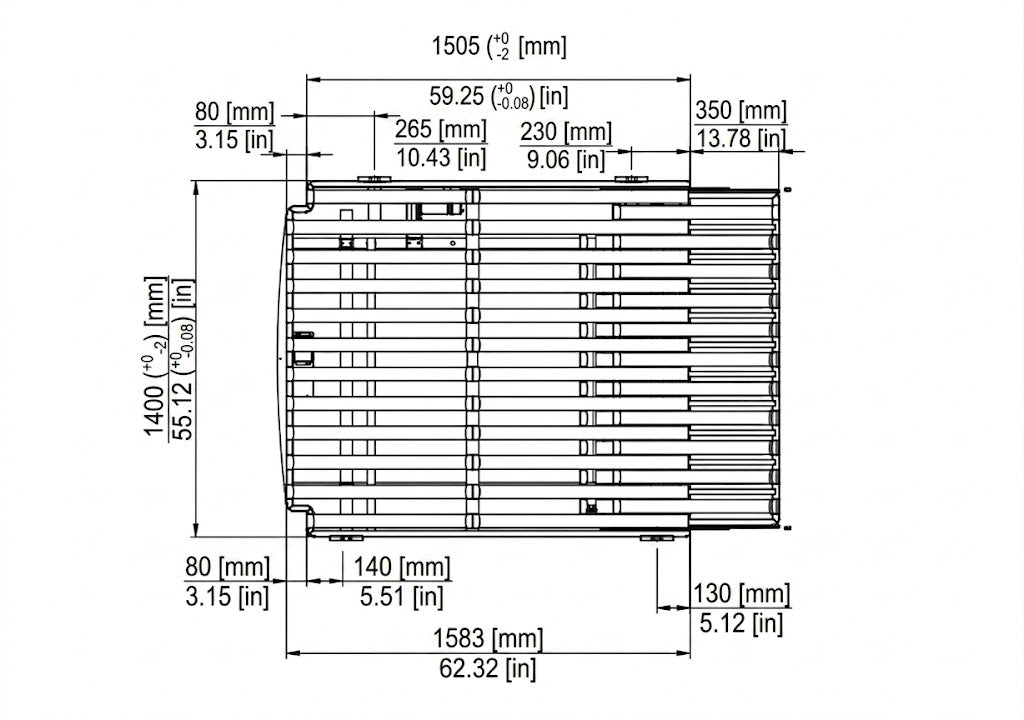

Measure the space before you build around it.
The expandable platform is 63 × 55 inches retracted and 77 × 55 inches fully extended. The 80 mm / approximately 3.1-inch frame measurement excludes the slats and mattress.
See the system from every angle.

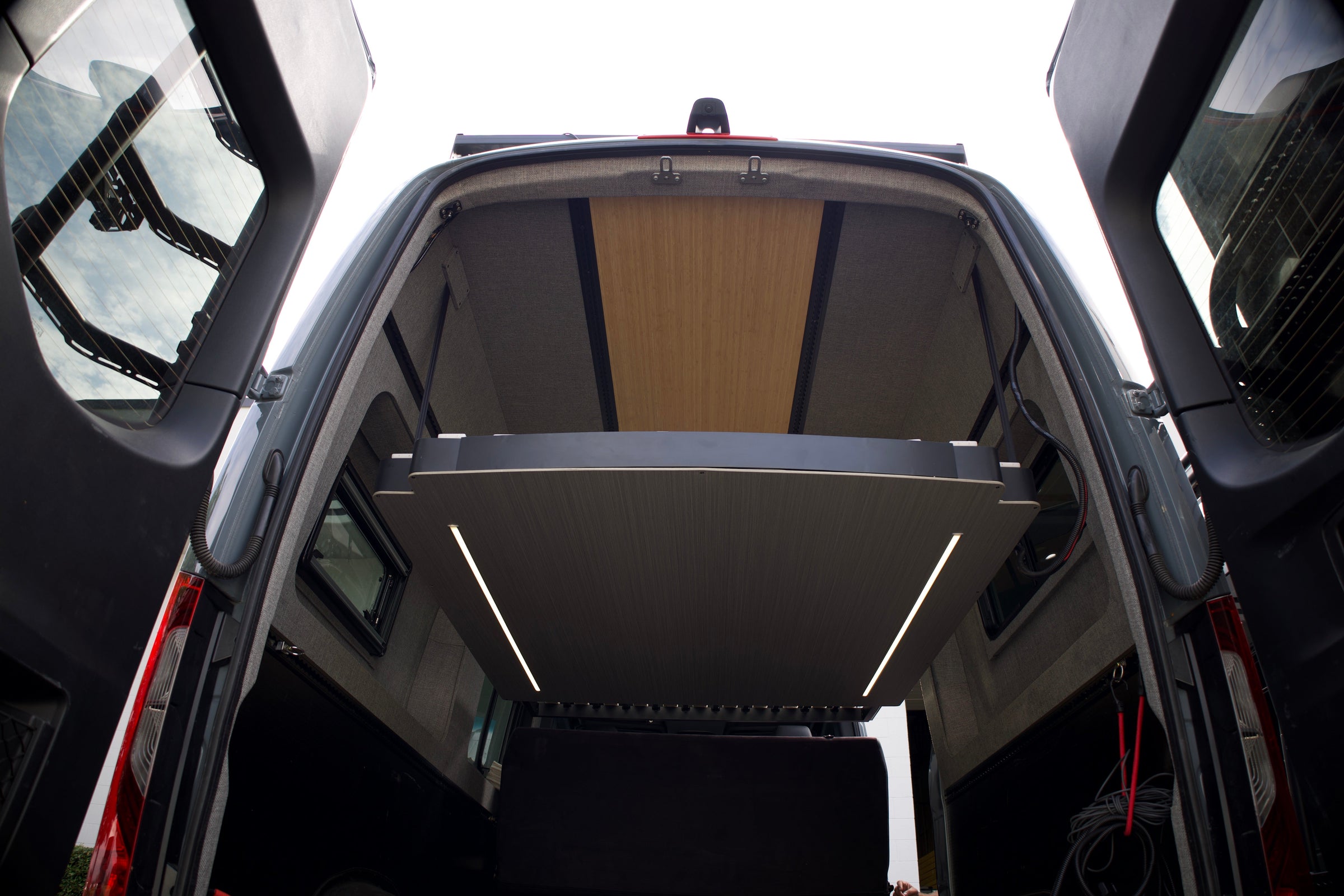

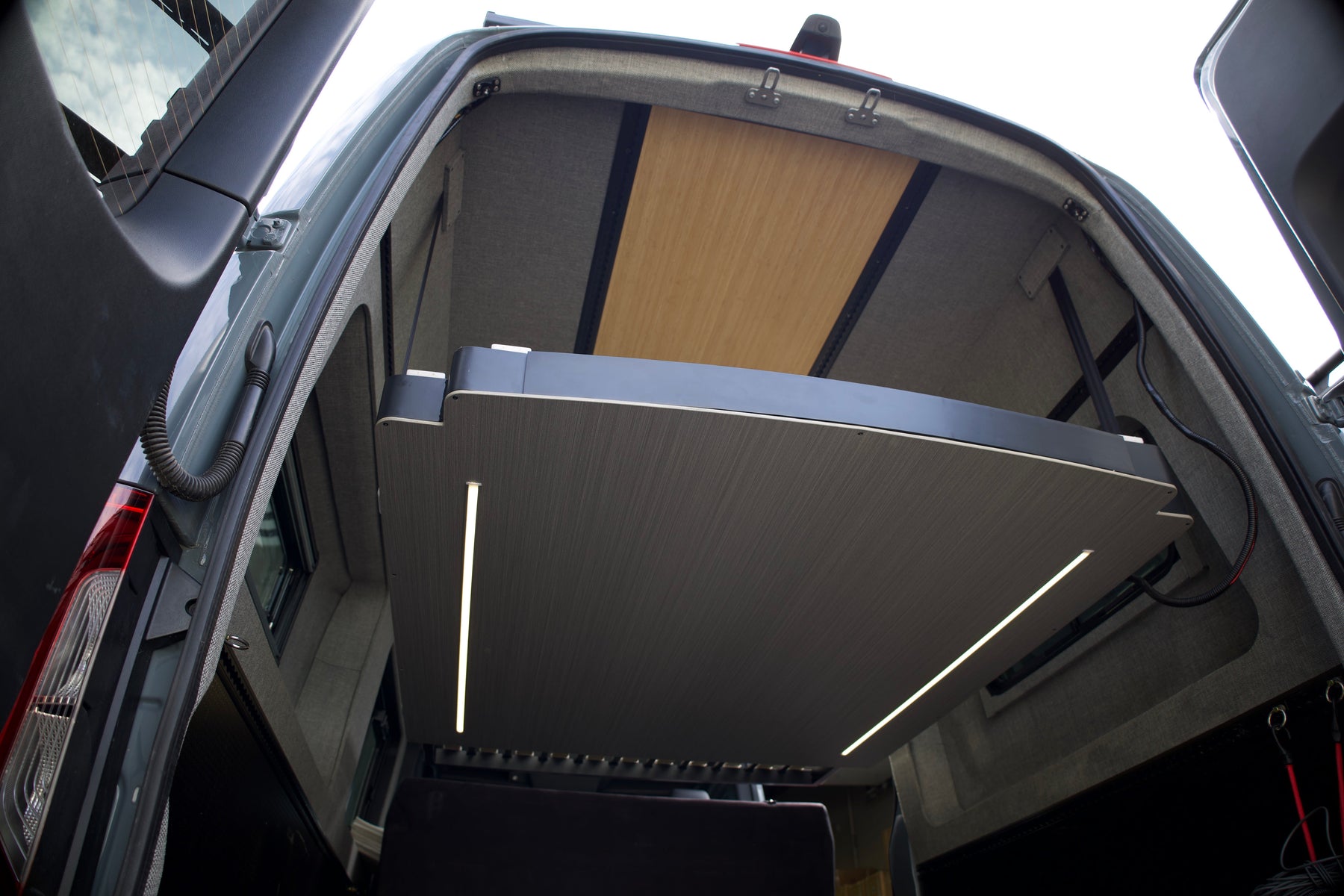

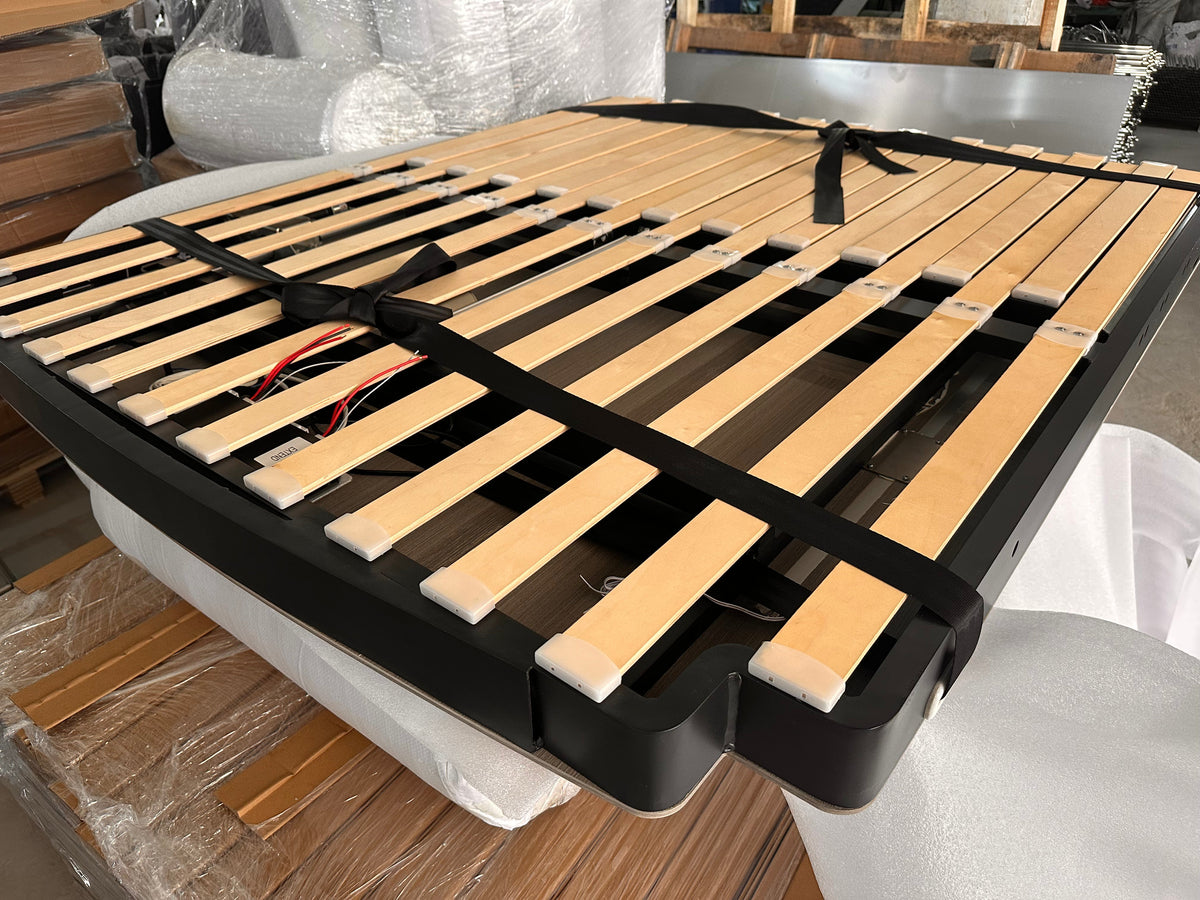

All photographs below show the actual RoamLabX expandable elevator-bed system, its frame and installation details.
Watch the bed move.
See the real elevator-bed system operate inside a camper van.
Designed for flexible camper layouts.
The system supports Mercedes-Benz Sprinter 144 and 170, Ford Transit, Ram ProMaster and other custom camper platforms where the installer can provide the required mounting structure and clearances.
Mercedes-Benz Sprinter
144- and 170-inch wheelbase camper conversions.
Ford Transit and Ram ProMaster
Compatible custom layouts with suitable mounting structure.
Short-wheelbase layouts
The extension enables north–south sleeping without permanently occupying the full floor length.
A complete lift-and-sleep package.
Expandable bed platform
Powder-coated aluminum frame, slats and 2-inch bi-fold mattress.
Electric lift components
Motors, control module, wiring harness, wireless remote and physical switch.
Installation components
Guide rails, mounting hardware and installation instructions.
Questions to answer before ordering.
Review the complete mounting, alignment, wiring and operating instructions before beginning your installation.
How much vertical space does the frame use?
The frame is approximately 80 mm, or 3.1 inches, before the slats and mattress.
Where should the guide rails be installed?
Guide rails work best near vertical cabinetry or shower walls. Some layouts may support the bed on properly engineered cabinetry.
What happens if electrical power is unavailable?
Each motor includes a mechanical emergency-release handle, accessible from above through the frame ribs or from below after removing the bed panels. Engaging it disconnects the drive; deliberate downward force is required for controlled lowering.
Can bedding remain on the platform?
Yes. The smart controller monitors motor load and stops automatically as resistance increases. The bed can lift with its mattress, bedding and secured soft items, but all stored items must be secured against sudden braking, sharp maneuvers or a collision.
Does it fit every van automatically?
No. Confirm vehicle dimensions, mounting structure, wall geometry, travel clearance and installation requirements for your exact build.
Is professional installation recommended?
Yes. The mounting structure and lift alignment are safety-critical parts of the installation.
